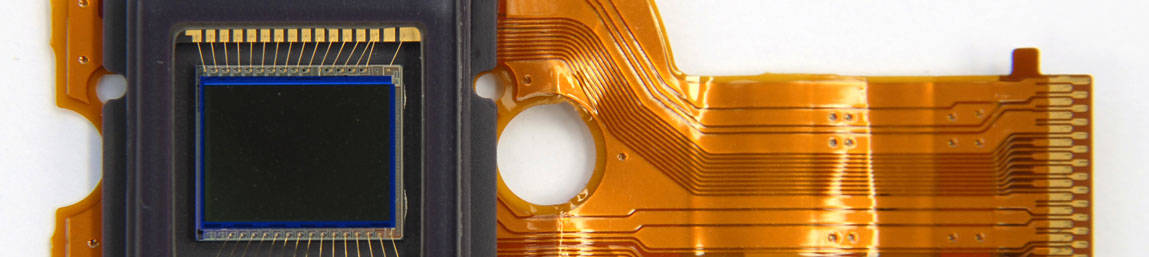

Microelectronics, flex circuit parylene coated

KAPhesion

ADVANCED ADHESION TECHNOLOGY

Problems with Parylene Adhesion to Kapton® or Polyimide?

VSI Parylene’s KAPhesion™  is the bonding solution for your flex circuits and polyimide products.

KAPhesionTM promotes superior adhesion of parylene onto polyimide and Kapton® substrates. VSI’s exclusive adhesion prep process will advance your product reliability for flex circuits, medical devices, IoT and wearable technology.

adhesion_plot_1

Figure 1 Plot of parylene adhesion and ASTM D3359 tested polyimide samples with A-174 (0B) and KAPhesion (3B average) adhesion promotion formulas.

For wet adhesion promotion, A-174 silane is widely employed due to the ability of the alkoxysilane functional group to crosslink with hydroxyl groups, which commonly occur and are easily generated on many substrates. However, polyimide substrates lack available hydroxyl groups and cannot cross-link with alkoxysilane functional groups. As a result, with the use of A-174 adhesion promotion solution, poor adhesion of parylene onto polyimide may lead to delamination, as can be shown in Figure 2b.

The R&D engineers at VSI Parylene conducted a series of experiments to create the optimal adhesion promotion solution for parylene onto polyimide substrates. A variation of chemistries, solvents, concentration, time and temperatures were variables in the experimental design. The ASTM D3359-09ε2 adhesion measurement by tape test method was used to quantify parylene adhesion onto polyimide substrates after adhesion promotion and parylene coating. A formula with an average of 90% adhesion (3B classification) was achieved, with samples of up to 100% adhesion (5B) demonstrated, see Figure 1. While A-174 samples result in complete delamination (0% adhesion, 0B), KAPhesionTM provides a verified solution to the polyimide adhesion promotion problem.

delamination_1

Figure 2 Parylene C on polyimide substrate, cut into 1 mm x 1 mm squares, and pulled by ASTM D3359 tape test: case of a) full adhesion and b) delamination.

KAPhesion™ is available exclusively from VSI Parylene.  Ask an engineer about your application and let us impress you!  Because each customer’s part is unique, our engineers bring their extensive experience in fixturing and manufacturing processes to ensure that every part is coated to your unique specifications. For products requiring innovative solutions, there is no better choice than VSI Parylene.
